| Place of Origin: | China |
| اسم العلامة التجارية: | XZH TEST |
| إصدار الشهادات: | CE/ISO |

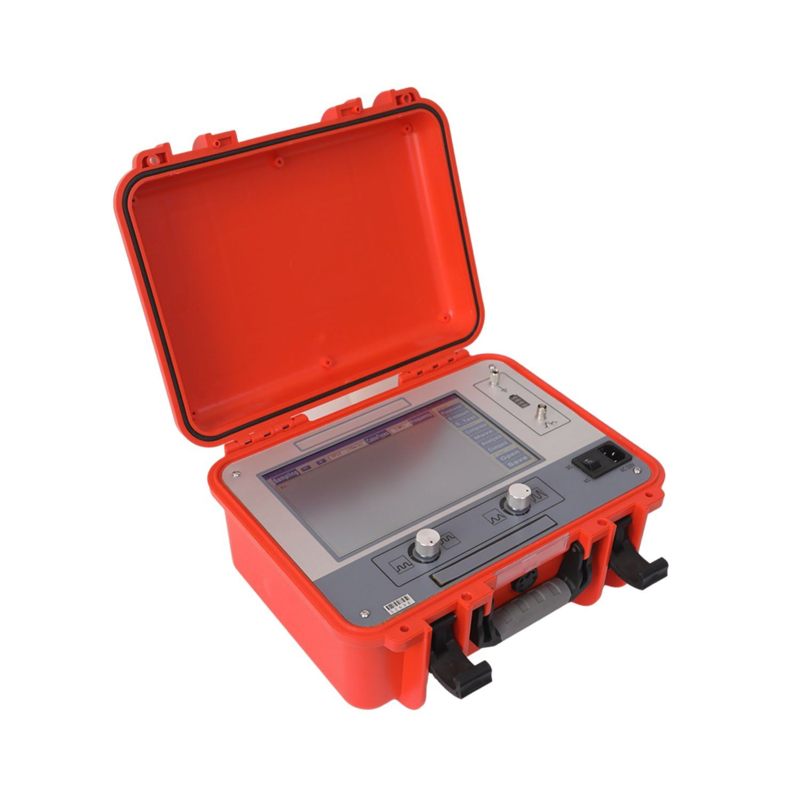

| Model Number: | XHGG501D |
| Attribute | Value |
|---|---|
| Display | 10" LCD |
| Operating Temperature | -20ºC ~ +60ºC |
| Pulse Width | 0.1us/2us |
| Parameter | Specification |
|---|---|
| Sampling frequency | 100MHz |
| Repeatability | 0.1uS/2uS |
| Minimum resolution | 0.5m |
| Test blind area | ≤20m |
| Ranging range | ≤30km |
| Measurement error | ≤±(0.5%×L+1m), where L is the cable length |
| Ambient temperature | -20~+60ºC |
| Relative humidity | <90% |
| Supply voltage | AC220V ± 10% |
| Item | Quantity | Item | Quantity |
|---|---|---|---|
| Cable fault tester | 1 | Single q-wire | 1 |
| Double q-line | 1 | Sampler | 1 |
| Power cord | 1 | Safety tube | |
| Ground wire (optional) | 1 |
