| مكان المنشأ: | شيان شنشي |
| اسم العلامة التجارية: | XZH TEST |
| إصدار الشهادات: | ISO |
| رقم الموديل: | XHGG510S |
Main Technical Parameters:
1. Low Resistance Fault Simulator: 0Ω~Several Hundreds of Ω
2. Open Circuit Fault Simulator: Several Ω~∞
3. Leakage High Resistance Fault Simulator: Several Ω~Hundreds of MΩ
4. Flashover High Resistance Fault Simulator: Flashover Voltage Range Several kV~Hundreds of kV
5. Continuous Operating Time: 8 hours
6. Operating Conditions:
a. Ambient Temperature: -30℃~ +70℃
b. Relative Humidity (RH) ≤ 85% (25℃)
c. Altitude: h ≤ 1000m

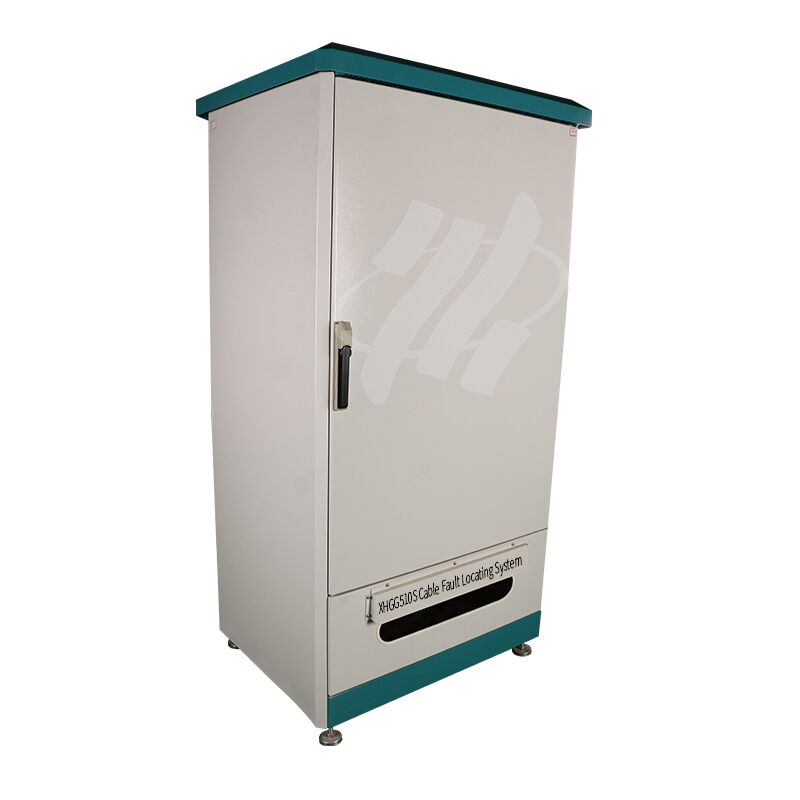

Simulation Box Structure This power cable fault simulator box consists of four different types of fault simulators (low resistance, open circuit, high leakage resistance, and high flashover resistance). They are arranged parallel to each other within the simulation box, and are insulated from each other and from ground by support insulators mounted on elbow-shaped plug-in components inside the box.
Instructions for Use
Composition of the Simulated Fault Circuit: The simulated fault circuit consists of two cable reels connected in series to the cable fault simulator box.
