| مكان المنشأ: | شيان شانشي الصين |
| اسم العلامة التجارية: | XZH TEST |
| إصدار الشهادات: | ISO |
| رقم الموديل: | XHGG502A2 |
Description

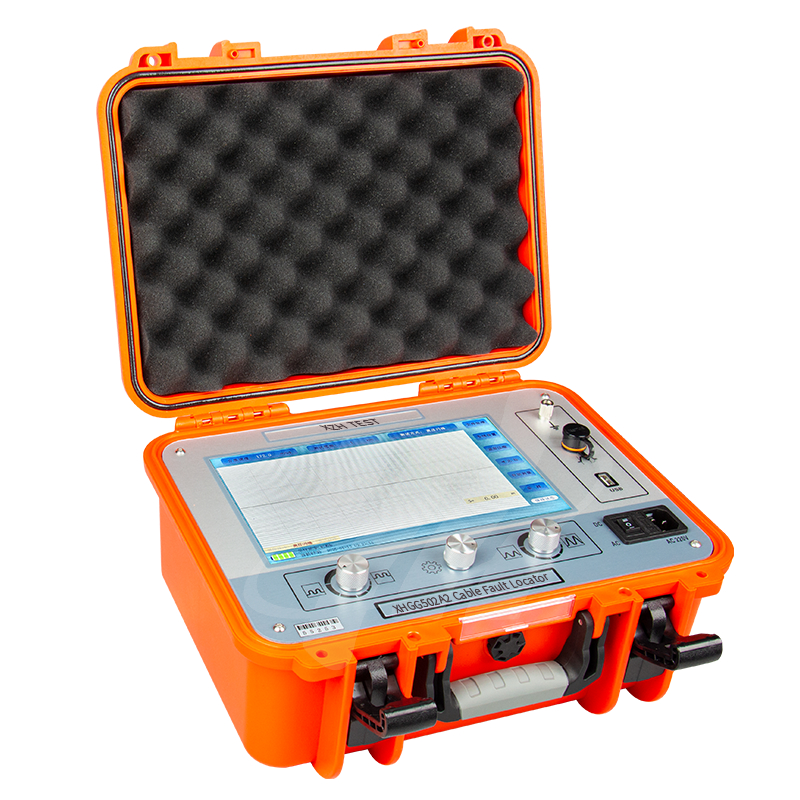

This cable fault locator is a special instrument for measuring and analyzing the status and fault distance of power cables.
With the function of testing cable wave speed, cable length and fault distance
The cable fault tester adopts an industrial-grade 10.1-inch touch-integrated computer, a simple operating software interface, industrial-grade integrated circuits and devices, and a built-in large-capacity lithium-ion battery, which is stable, reliable, and easy to use.
Technical specification
|
Low voltage pulse amplitude |
100V±15% |
|
Ranging range |
≥65km |
|
Test range |
300m/1km/5km/25km/65km |
|
Pulse width |
0.125uS/0.50uS/2.50uS/7.25uS/10.0uS |
|
Minimum resolution |
0.1m |
|
Test blind area |
≤20m |
|
Power supply mode |
charging AC110V～240V, 50Hz/60Hz |
Packing list
