| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | XZH Test |
| إصدار الشهادات: | CE、ISO |
| رقم الموديل: | XHGG501D |

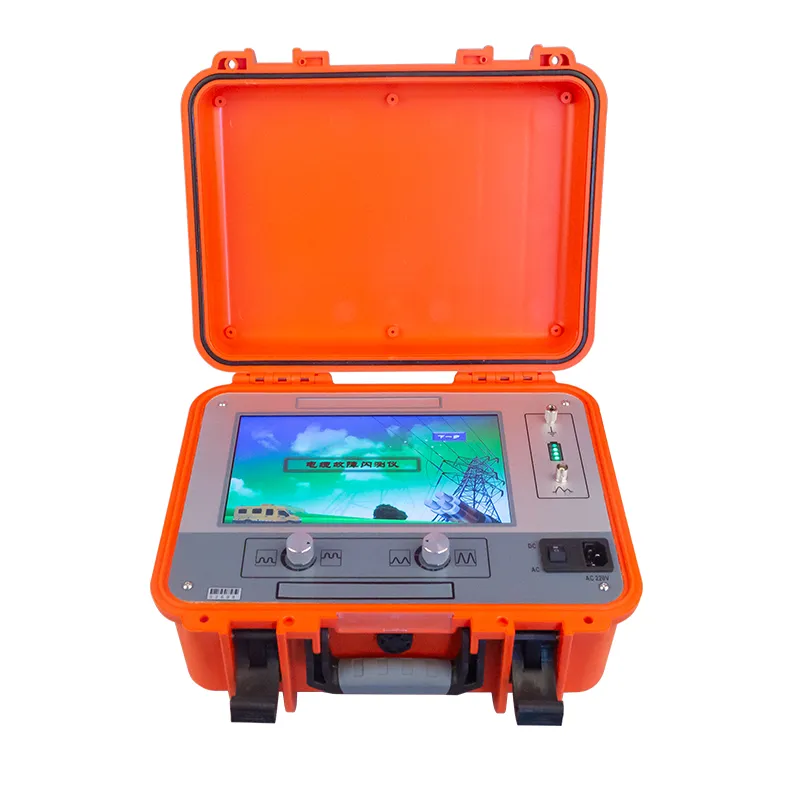

XHGG501D TDR cable fault locator is suitable for measuring low resistance, short circuit, open circuit and disconnection faults of various materials of various materials with different cross-sections and different media, high-frequency coaxial cables, local telephone cables, street light cables, and buried wires, and High-resistance leakage and high-resistance flashover faults.
| XHGG501D | For cable fault rough distance measurement. Test method: low voltage pulse, high voltage flashover method(ARC-single shot, ICE) |
1. Industrial grade 8"LCD display-viewing angle] 160°, working temperature -25ºC~+65ºC;
2. SCM centralized control, touch operation mode, strong anti-interference ability;
3. It has the functions of distance measurement, speed measurement and resistance measurement;
4. Fully automatic continuous sampling, never miss any discharge waveform;
5. Test method: flashover sampling, low-voltage pulse sampling
6. Pulse amplitude: 100Vpp
7. Pulse width: 0.1uS and 2uS
8. Measuring distance: Smax: 30km; Smin: 15m
9. Measurement error: absolute error of rough measurement: ±10m relative error of rough measurement: ±1%
10. Power supply mode: built-in lithium rechargeable battery, which can work continuously for 6 hours
It can also be connected to AC 220V±10% 50Hz power supply
Charging in non-working state.
English version available, welcome you contact us for more information.
---------------------------------------------------------------------------------------------------------------------------------------------------------
System
Cable fault location case
Cable Model :10kV XLPE cable.
Testing device: 1. TDR underground cable fault locator
2. DC High voltage surge generator
3. Cable fault pinpointer
Packaging: Wooden box
Shipping: DHL TNT FedEx and UPS etc.
Shipping time: 7-15 days if it's in stock.
A: We are factory.
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock,
it is according to quantity.
A: Payment<=1000USD, 100% in advance.
If you have other questions, pls send us an inquiry below:
XI'AN XU&HUI ELECTROMECHANICAL TECHNOLOGY CO.,LTD
Building B8-01, Phase I, Ronghao Industrial City, No. 2098, Weiyang 9th Road, Gaoling District, Xi'an
